Reinforced
Commercial Footings

Deep strip & rebar cages Commercial site Recently completed

The brief

Deep reinforced strip footings for a new steel-frame commercial building. We dug the trenches to engineer's spec, set out and tied full rebar cages on plastic spacers and cast holding-down bolt assemblies for the steel stanchions before pouring concrete to underside-of-DPC level.

Bolt positions were templated off plywood jigs to keep tolerances tight for the steel erector — every base set ready to take the frame straight off the wagon.

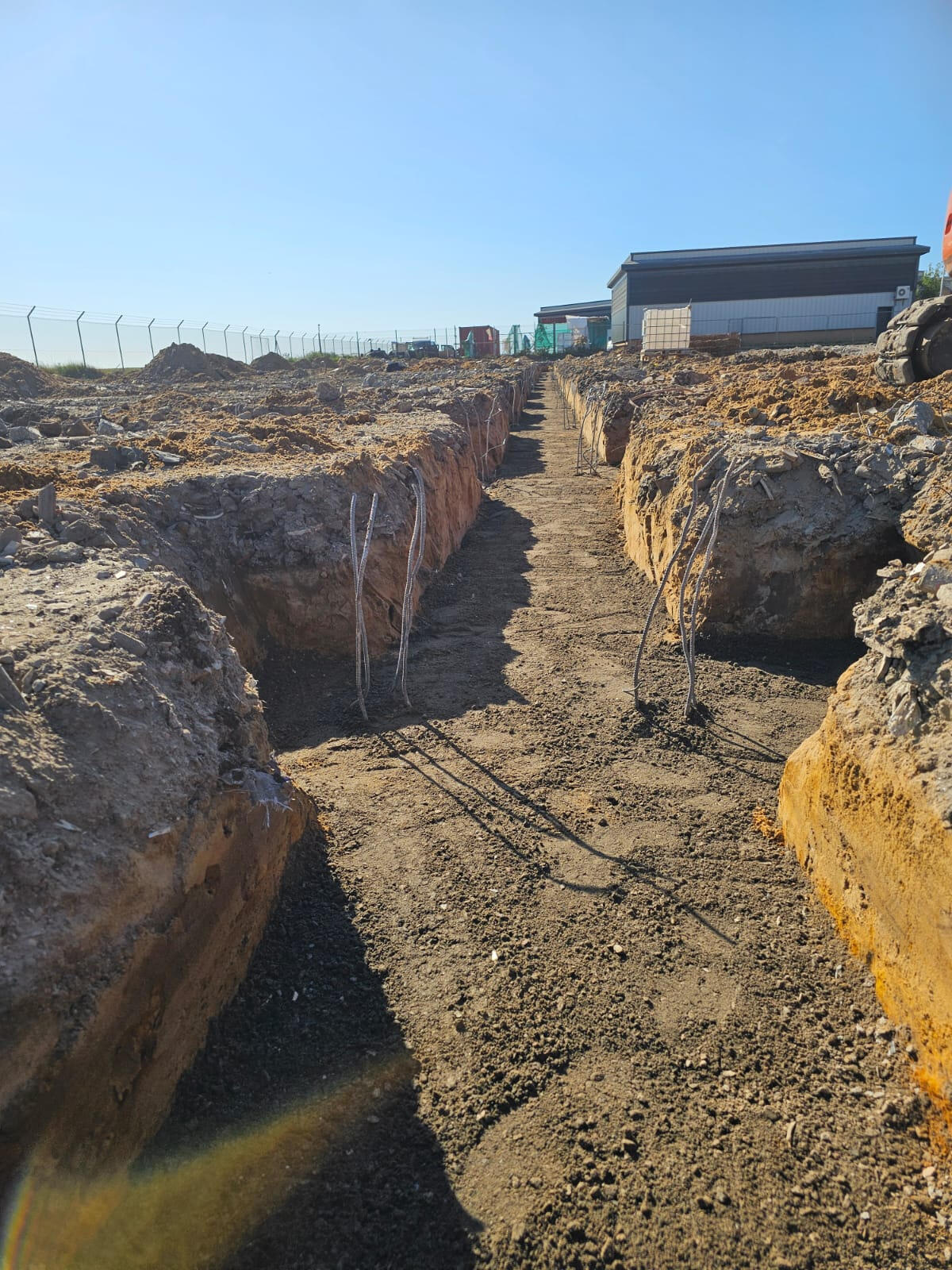

Excavated commercial strip footing trenches with rebar starter bars — 01Strip trenches excavated

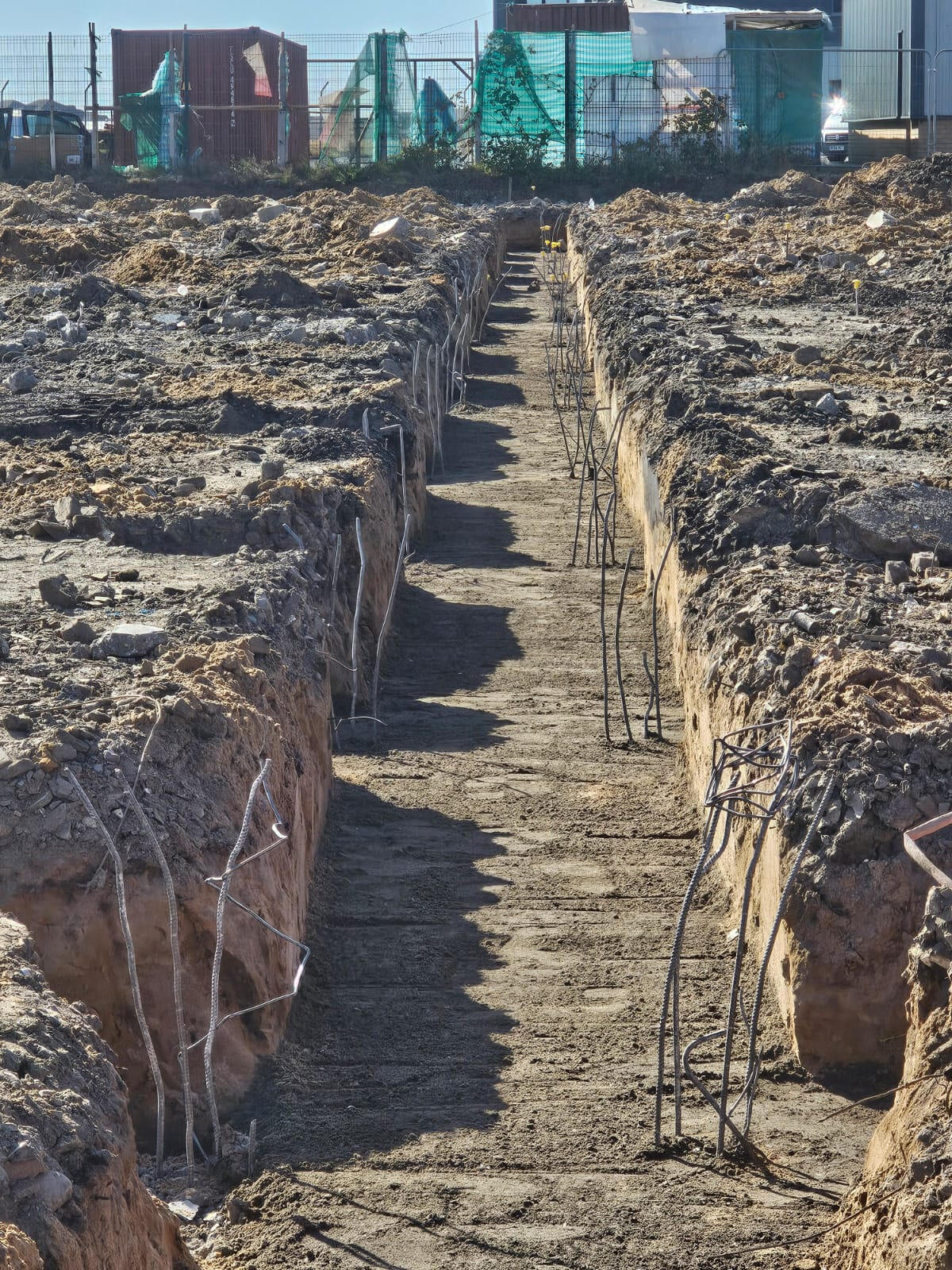

Deep reinforced strip trenches with vertical starter bars projecting — 02Starter bars set out

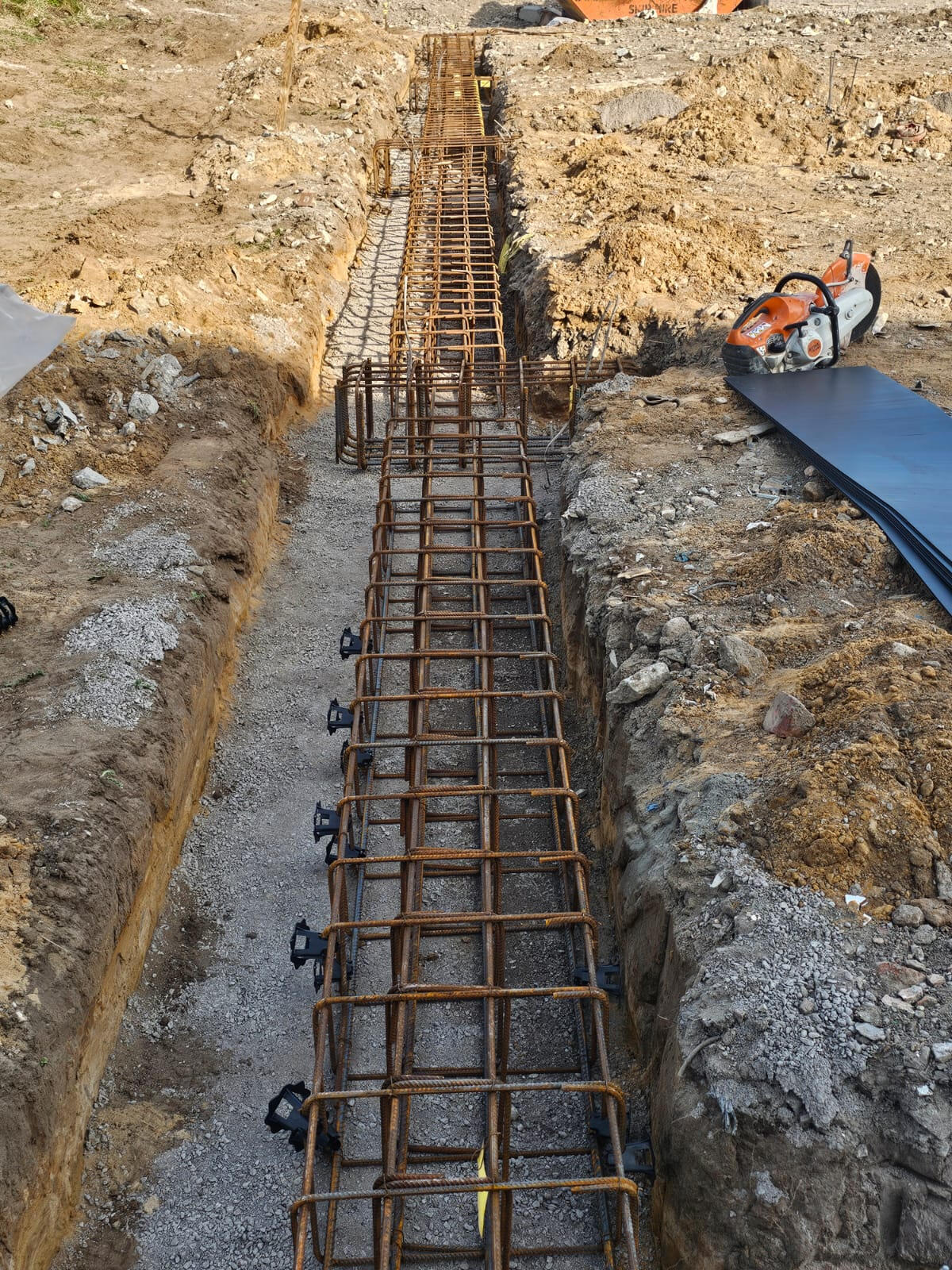

Full rebar cage with spacers sat in a strip footing trench ready for concrete — 03Rebar cage on spacers

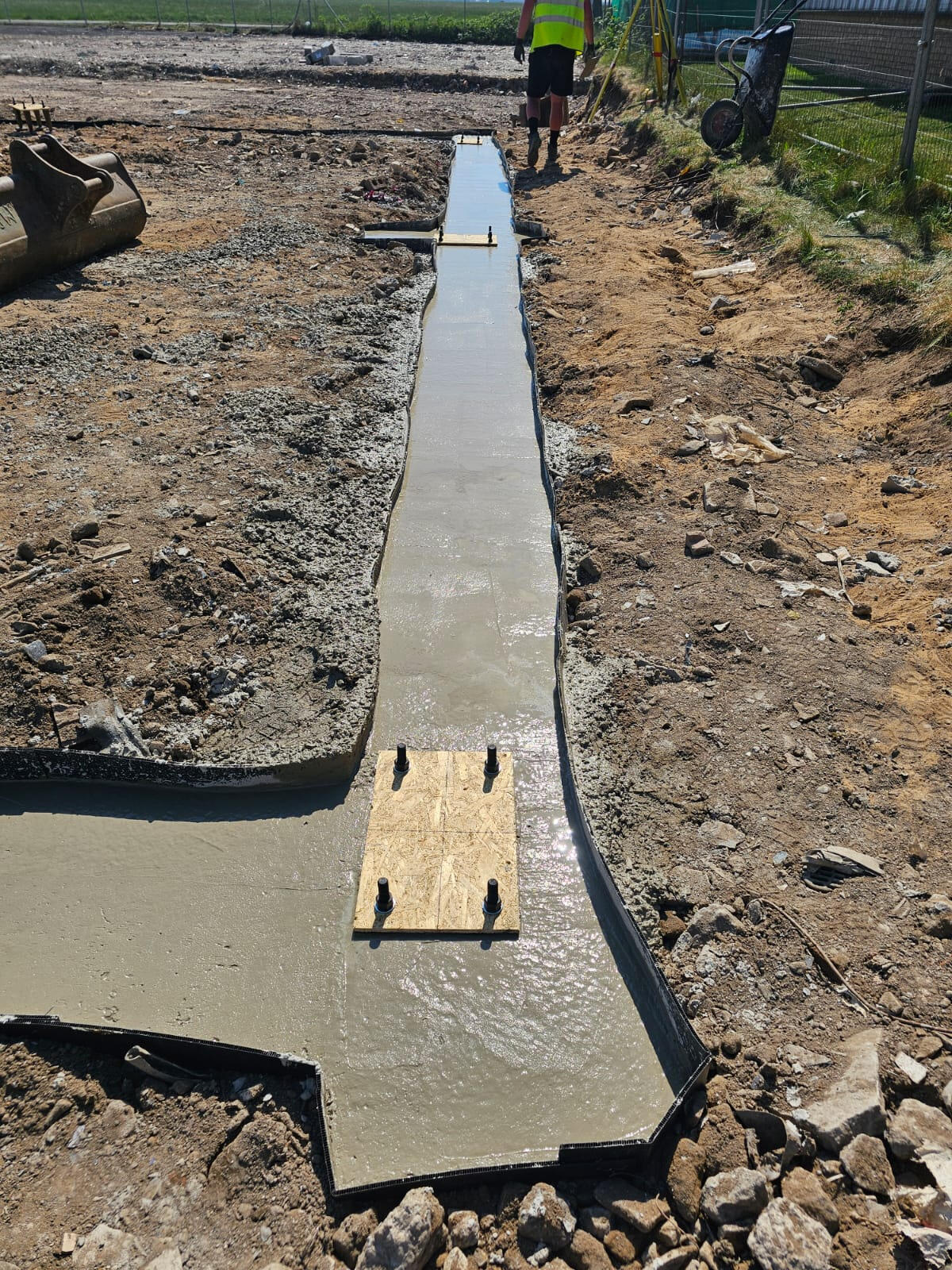

Poured concrete strip footing with cast-in holding-down bolt baseplate — 04Strip footing poured

Close-up of cast-in holding-down bolts on a stanchion base ready for steel — 05Holding-down bolts cast in
